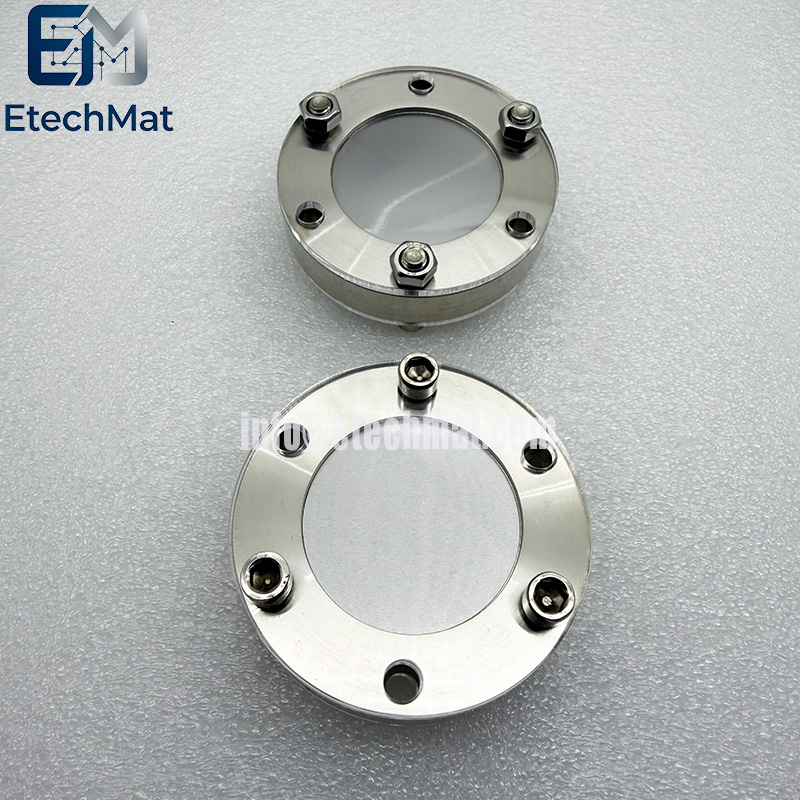

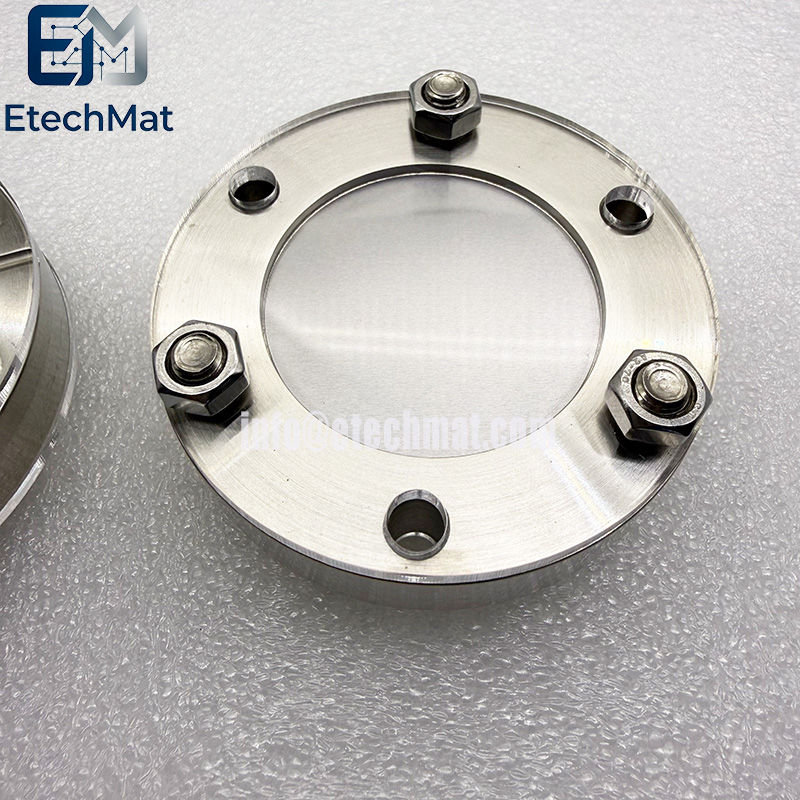

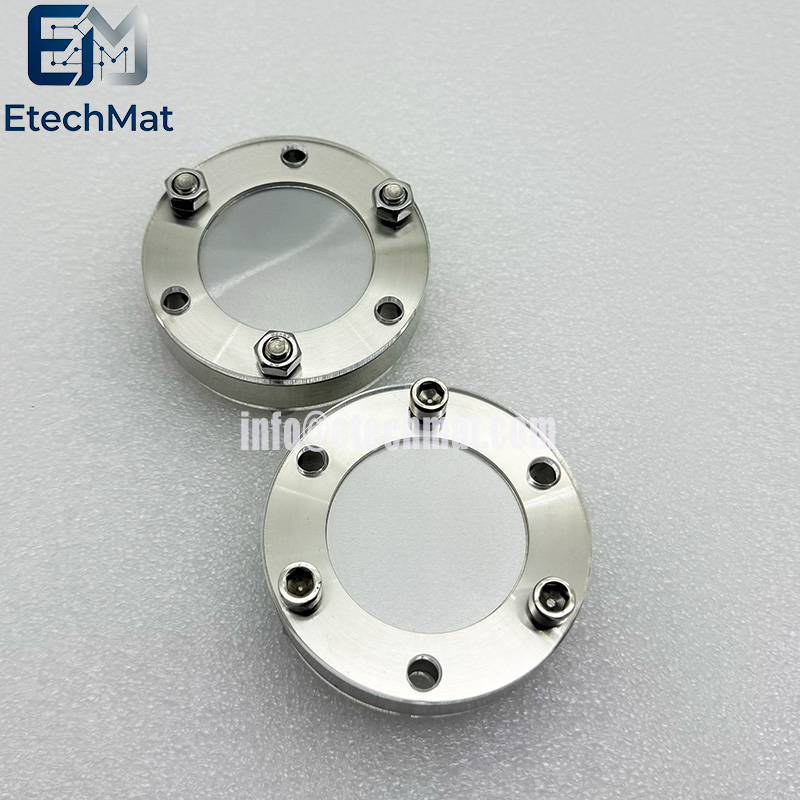

Description of Pure Beryllium Windows for X-Ray Optics

Standard‑grade beryllium windows often carry trace impurities and scattered micro‑inclusions that create unwanted beam speckles and distort measurement data, a frustrating issue for synchrotron beamlines and high‑precision X‑ray spectroscopy. Our pure beryllium windows are manufactured from tightly controlled high‑purity stock, keeping disruptive impurities to a minimum for cleaner, more reliable X‑ray transmission. Each foil maintains consistent thickness across its active area, delivering stable vacuum‑holding capacity while coping with regular thermal fluctuations during operation. We offer bare foils or custom‑sized pre‑mounted options to fit new instruments or retrofit existing set‑ups. Every piece goes through strict dimensional and surface inspections before dispatch. Bear in mind standard beryllium safety protocols must be followed during handling and installation. If you keep wrestling with noisy, inconsistent readings caused by low‑grade stock, these pure beryllium windows help stabilise your experimental results for mission‑critical X‑ray optical systems.

Features of Pure Beryllium Windows for X-Ray Optics

1. Pure beryllium for maximum X-ray transmission

2. Ultra-low absorption for bright signals

3. Polished surfaces for distortion-free imaging

4. Vacuum-tight seals for beamline safety

5. Custom sizes for various X-ray sources

6. High-purity grade for research accuracy

7. Durable foils withstand vacuum pressure

8. Low scattering for clean diffraction patterns

9. Ideal for synchrotron and lab systems

Applications of Pure Beryllium Windows for X-Ray Optics

Medical X-rays & CT scan systems

Analytical X-rays

Handheld XRF

Baggage inspection equipment

Specifications of Pure Beryllium Windows for X-Ray Optics

Beryllium Window

Flange material: 316L

Flange Diameter : 2.75inch(70mm)

Aperture Diameter : 1.53inch(39mm)

Foil Thickness : 0.005inch(0.13mm)

Leak Rate: ≤ 1.0 x 10⁻¹⁰ Pa·m³/s
