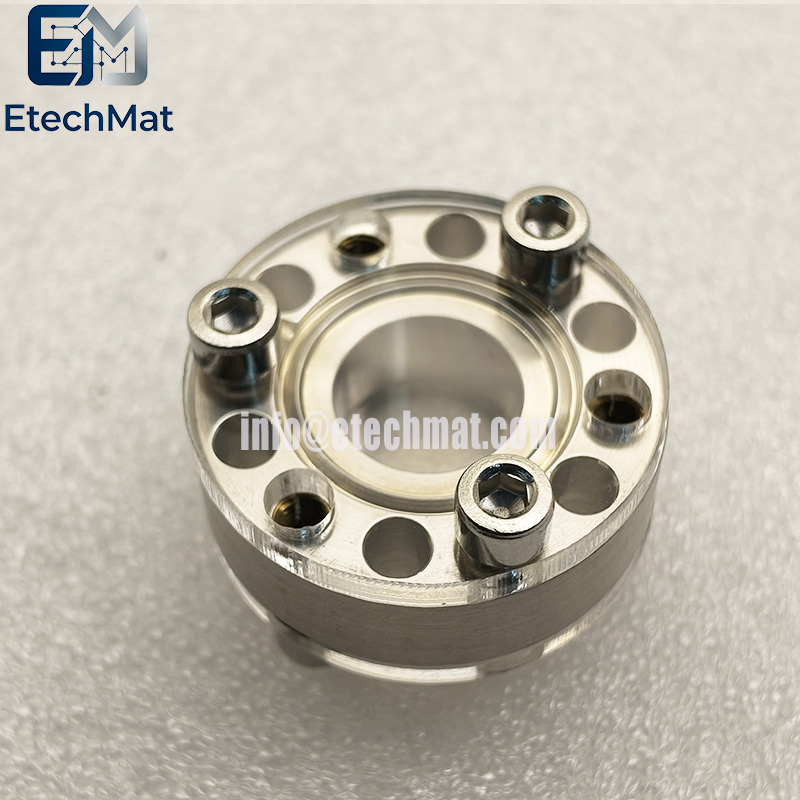

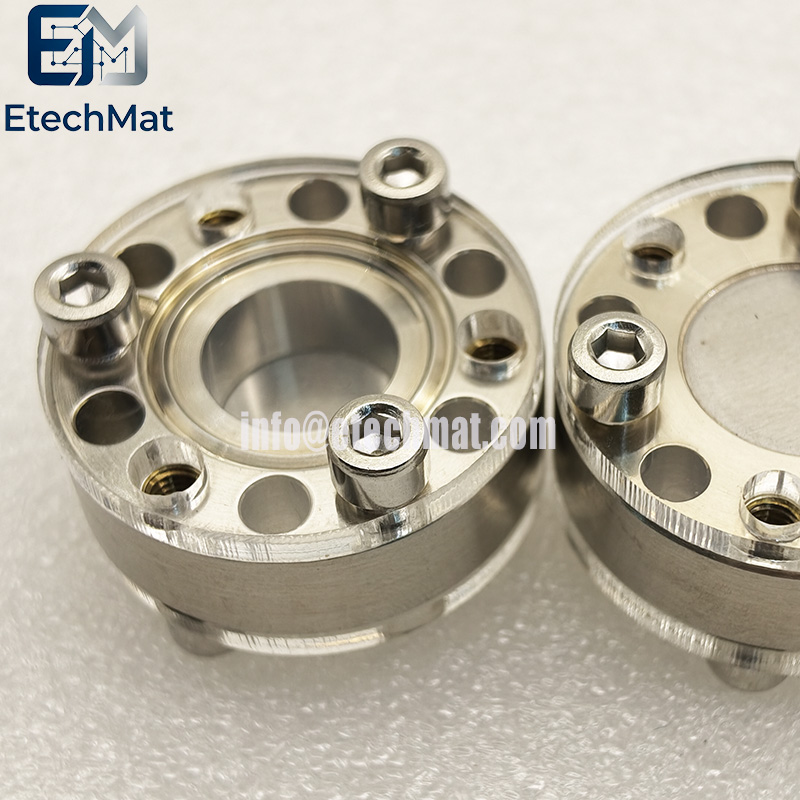

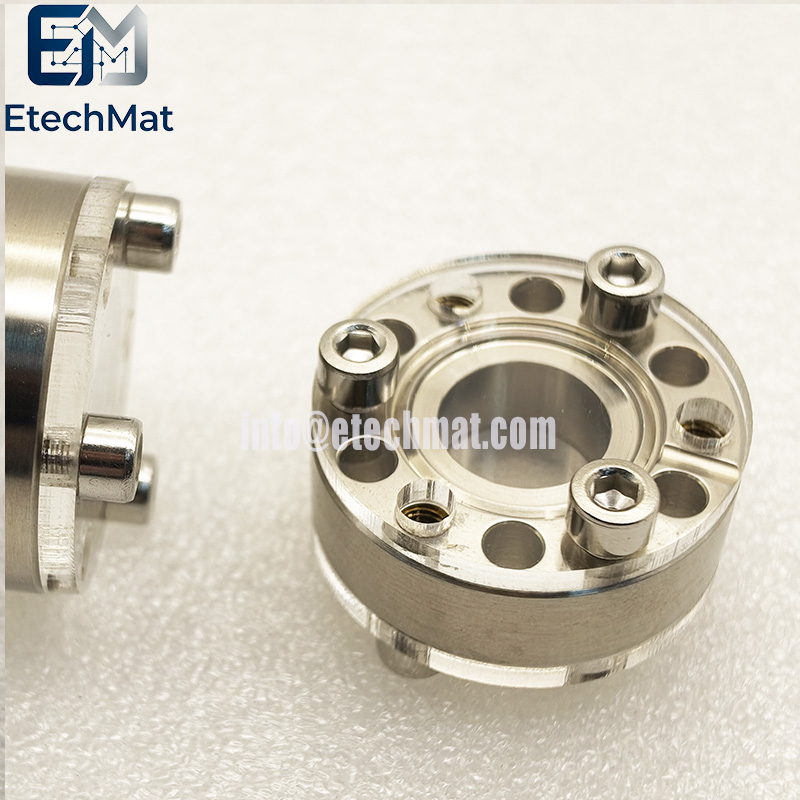

Description of Professional Optical Component Beryllium Window

Generic beryllium windows frequently carry hidden micro‑voids and thickness variations that sneak into optical assemblies, skewing X‑ray readings and forcing time‑consuming instrument recalibrations. Our professional‑grade beryllium windows are built for high‑demand optical systems, manufactured from high‑purity raw material to minimise inclusions that compromise beam quality. Each unit undergoes rigorous surface inspection and dimensional verification to guarantee uniform performance across the active aperture. Capable of sustaining stable vacuum differentials and resisting thermal cycling stress, these windows work well for synchrotron beamlines, X‑ray detectors and custom optical setups. Bare foils and pre‑mounted custom configurations are available for new builds or equipment retrofits. Standard beryllium safety procedures must be observed during handling and fitting. If you are fed up with budget‑grade parts introducing avoidable measurement errors, these professional optical components deliver consistent, trustworthy performance for your precision‑critical workflows.n

Features of Professional Optical Component Beryllium Window

1. High‑precision beryllium for optical systems

2. Low‑distortion window for critical imaging

3. Excellent UV to X‑ray transmission

4. Flat polished for wavefront accuracy

5. Custom apertures and coatings available

6. Thermally stable over a wide temperature range

7. Low scatter for clean optical paths

8. Vacuum‑compatible for chamber mounting

9. Rigorous QA with interferometry testing

10. Packaged in cleanroom class 100

Applications of Professional Optical Component Beryllium Window

Synchrotron radiation and free-electron lasers: Act as X-ray exit windows in back-end vacuum pipelines, enduring high power beam currents and preserving beamline ultra-vacuum conditions.

Semiconductor inspection equipment: Act as vacuum chamber windows for X-ray lithography (EUV/XRL), permitting precision alignment and defect identification.

Neutron scattering devices: Serve as neutron guide end windows and detector entrance windows, providing low absorption and high voltage resistance.

Electron beam/ion beam systems: Serve as observation windows and beam diagnostic windows in high vacuum chambers to shield from magnetic fields.

Specifications of Professional Optical Component Beryllium Window

Beryllium Window

Flange material: 316L

Flange Outer Diameter : 1.33inch(34mm)

Aperture Diameter : 0.53inch(13mm)

Foil Thick. : 0.005inch(0.13mm)

Leak Rate: ≤ 1.0 x 10⁻¹⁰ Pa·m³/s
