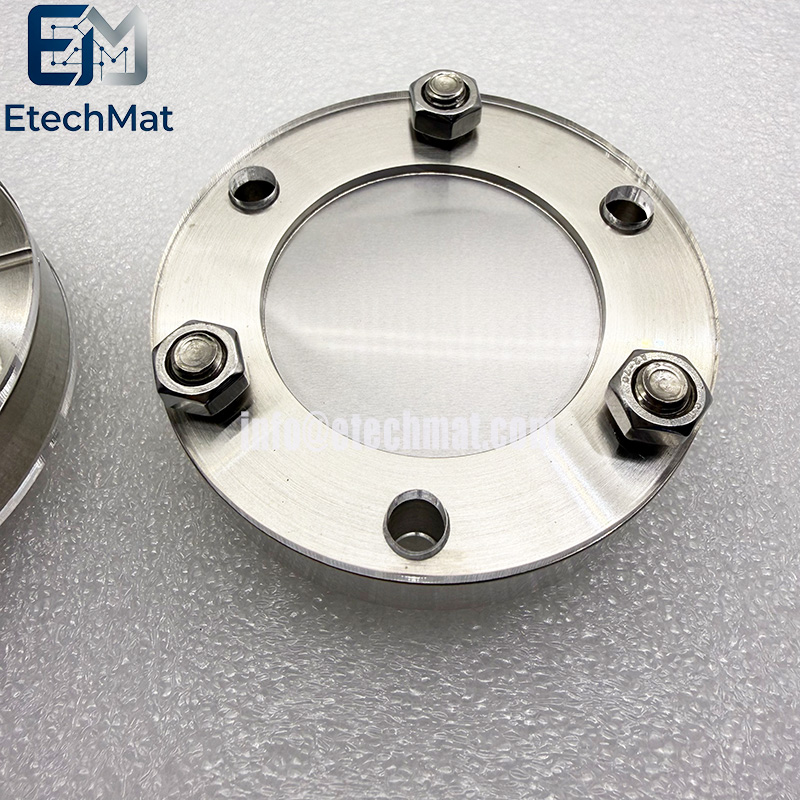

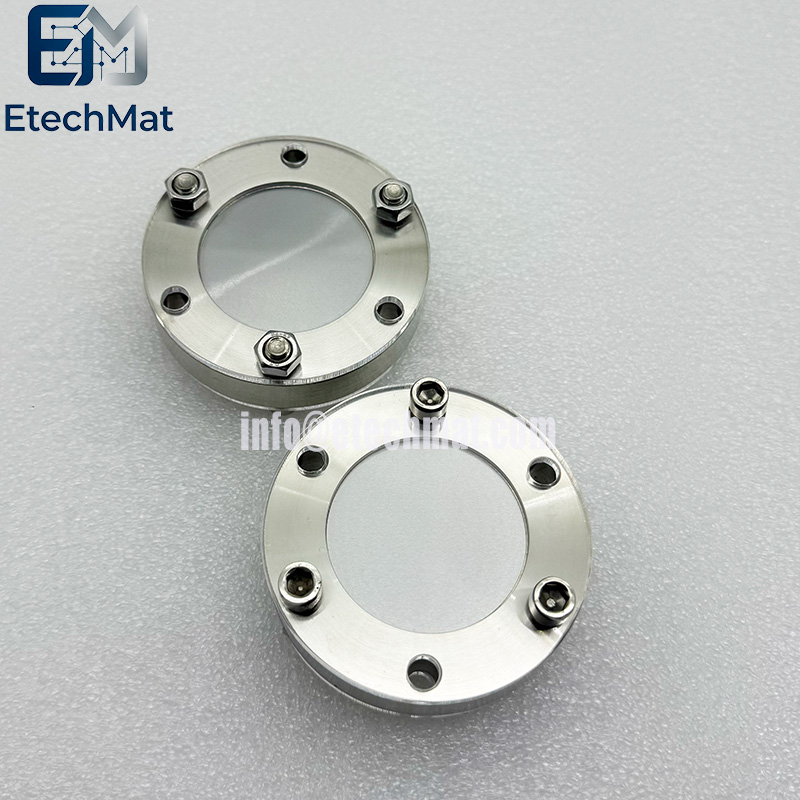

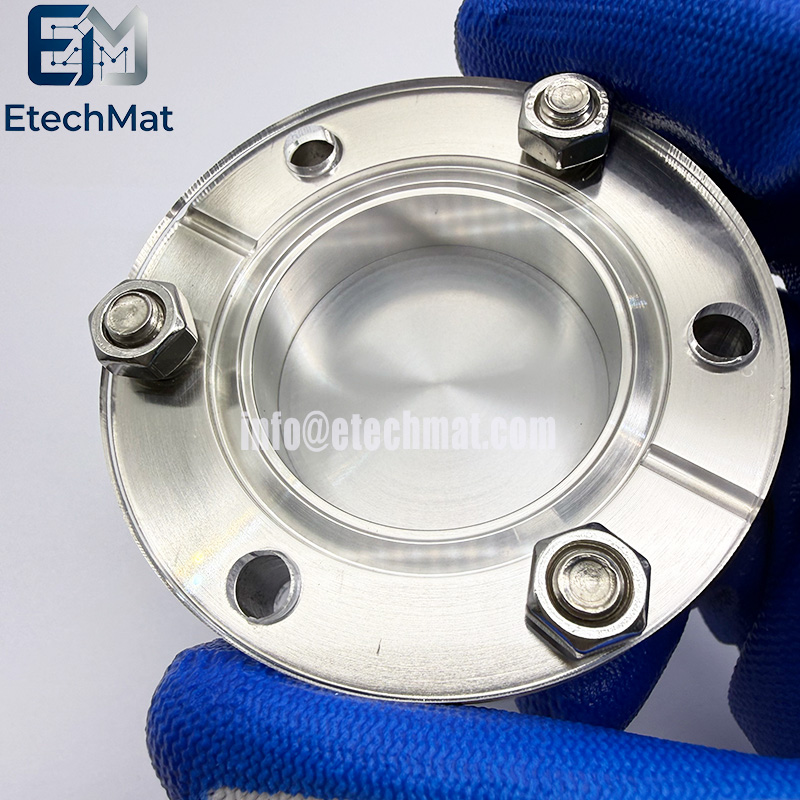

Description of Beryllium Windows for X-Ray Optics

Off‑the‑shelf beryllium windows often carry hidden micro‑voids and uneven foil thickness, triggering beam artefacts and skewed readings for synchrotron beamlines, X‑ray tubes and spectroscopy systems. Our windows are manufactured from high‑purity beryllium, balancing excellent X‑ray transmission with robust mechanical strength to sustain stable vacuum pressure differences. We strictly control foil uniformity to cut down signal inconsistencies that slow down your lab and industrial workflows. Available as bare foils or pre‑mounted assemblies, they support custom flange sizes for new instrument builds or field retrofits. Every unit undergoes thorough inspections to catch surface flaws before dispatch. These windows stand up to regular thermal cycling under demanding operating conditions. Please follow proper handling protocols for beryllium during installation and maintenance. If you are tired of inconsistent stock parts causing unexpected instrument downtime, our precision‑made beryllium windows deliver steady optical performance for your critical X‑ray set‑ups.

Features of Beryllium Windows for X-Ray Optics

1. High-transmission beryllium for X-ray clarity

2. Ultra-thin foils for minimal attenuation

3. Vacuum-compatible for beamline integration

4. Polished surfaces for low scatter loss

5. Custom diameters for OEM assemblies

6. Helium leak-tested to ensure reliability

7. Supports wide photon energy ranges

8. Reinforced edges for mechanical strength

9. Ideal for fluorescence and diffraction

10. Individual transmission curves supplied

Applications of Beryllium Windows for X-Ray Optics

Synchrotron radiation and free electron lasers: Act as X-ray exit windows in back-end vacuum pipelines, enduring high power beam currents and preserving beamline ultra-vacuum conditions.

Semiconductor inspection equipment: Act as vacuum chamber windows for X-ray lithography (EUV/XRL), permitting precision alignment and defect identification.

Neutron scattering devices: Serve as neutron guide end windows and detector entrance windows, providing low absorption and high voltage resistance.

Electron beam/ion beam systems: Serve as observation windows and beam diagnostic windows in high vacuum chambers to shield from magnetic fields.

Specifications of Beryllium Windows for X-Ray Optics
