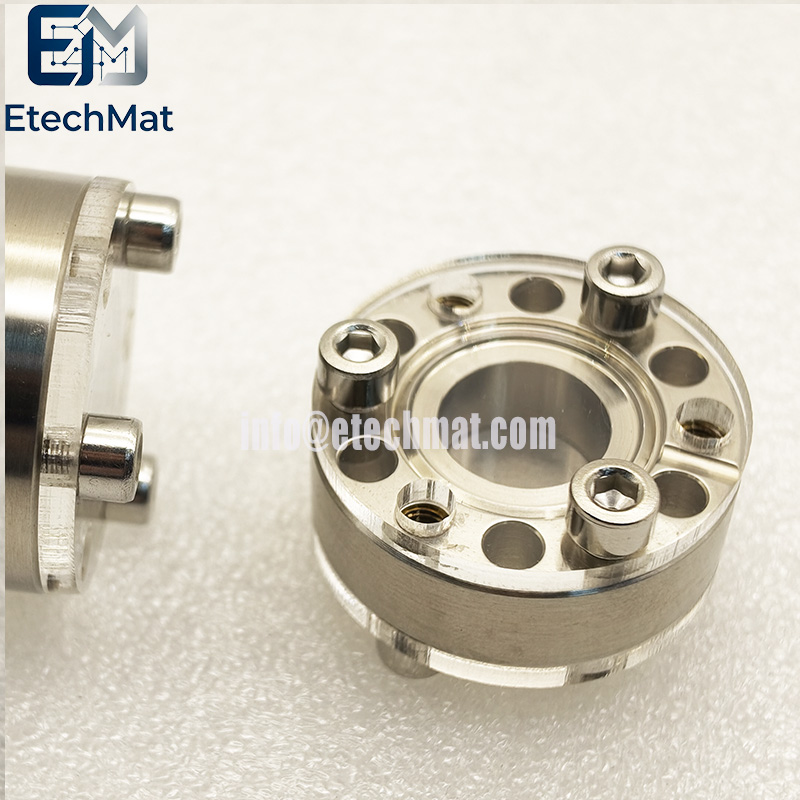

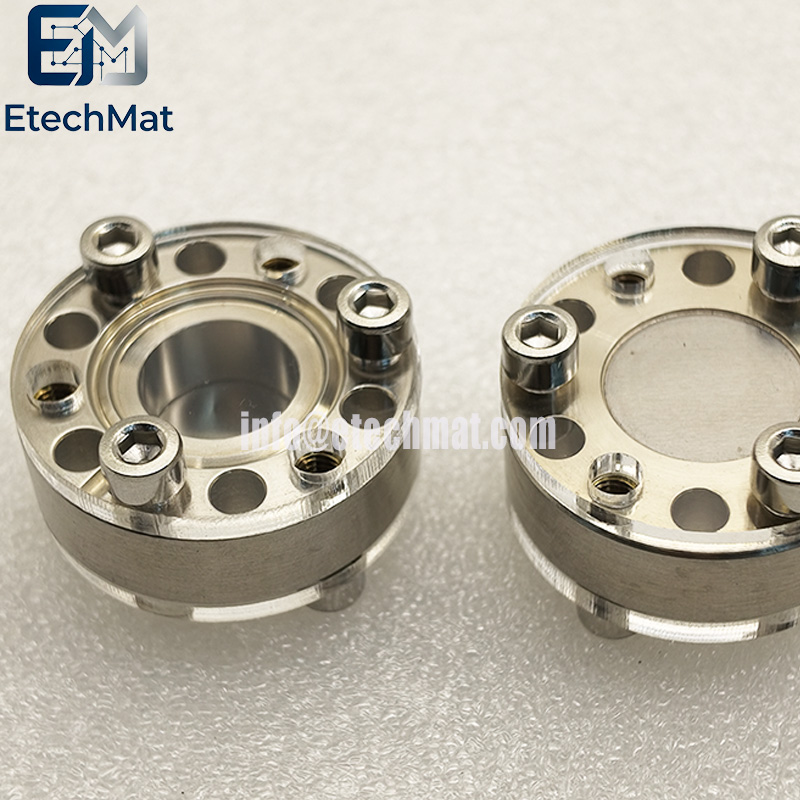

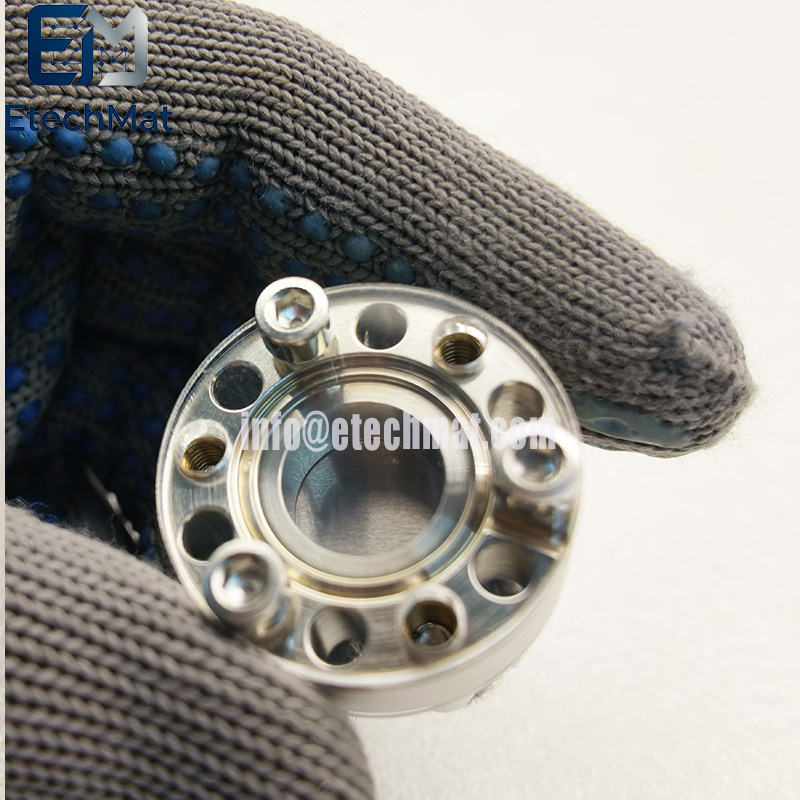

Description of Beryllium Windows for Medical X-Ray Tubes

Medical X‑ray tube applications demand unwavering beam consistency, where minor foil imperfections can compromise imaging clarity and system stability. Many commodity beryllium windows carry subtle micro‑inclusions or thickness variations that degrade image quality over repeated clinical cycles, creating inconsistencies for diagnostic radiology equipment. Manufactured from high‑purity beryllium, these windows maintain excellent low‑energy X‑ray transmission while sustaining durable vacuum integrity under frequent thermal shifts from clinical scanning cycles. Each unit undergoes multi‑stage inspection covering surface quality, dimensional accuracy, and leak detection before shipment. Custom foil thicknesses and pre‑mounted assemblies are available, supporting both brand‑new medical tube fabrication and retrofits for existing diagnostic devices. Built to meet the strict performance benchmarks of medical imaging systems, they deliver uniform beam output to support sharp, dependable clinical scans across daily diagnostic operations.

Features of Beryllium Windows for Medical X-Ray Tubes

1. Medical-grade beryllium for diagnostic clarity

2. Low attenuation for patient dose reduction

3. High thermal stability for extended use

4. Precision-polished for sharp images

5. OEM-compatible sizes for major brands

6. Vacuum-sealed for reliable tube performance

7. Helium leak-tested for safety standards

8. Custom apertures for collimator matching

9. Long-lasting foil for reduced downtime

10. Supplied with individual inspection reports

Applications of Beryllium Windows for Medical X-Ray Tubes

1. General Radiography & Fluoroscopy: Used in stationary X-ray systems for chest, bone, and abdominal imaging, where low X-ray attenuation ensures clear diagnostic images with minimal patient dose.

2. Mammography: Essential for breast cancer screening systems, as the low-energy X-rays required for soft tissue contrast pass through beryllium with very little absorption, preserving image detail.

3. Dental & Panoramic Imaging: Found in intraoral, cephalometric, and CBCT dental units, enabling sharp visualization of teeth and jaw structures while keeping radiation exposure low.

4. Mobile & Point-of-Care X-Ray: Integrated into portable and C-arm systems used in operating rooms, emergency departments, and bedside imaging, where lightweight and durable windows support frequent movement and quick start-up.

5. Interventional & Cardiovascular Procedures: Used in angiography and cardiac catheterization labs, providing clear real-time imaging for guiding minimally invasive surgeries with reduced radiation risk to both patient and staff.

Specifications of Beryllium Windows for Medical X-Ray Tubes

Beryllium Window

Purity of Beryllium: 99.0%

Flange material: 316L

Flange Outer Diameter : 1.33inch(34mm)

Aperture Diameter : 0.53inch(13mm)

Foil Thickness. : 0.005inch(0.13mm)

Leak Rate: ≤ 1.0 x 10⁻¹⁰ Pa·m³/s

Temperature resistance: 450ºC
