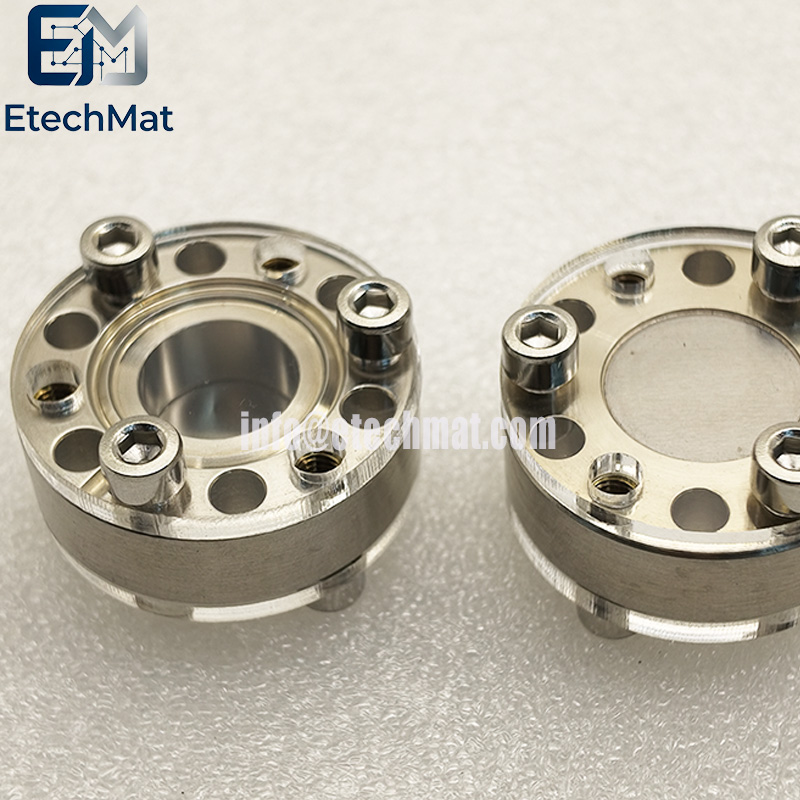

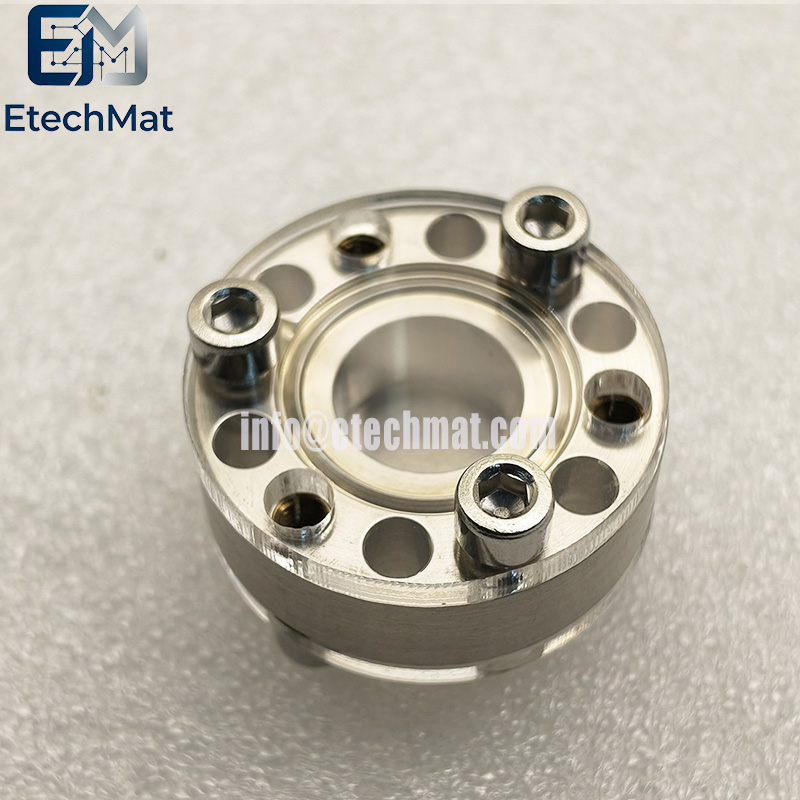

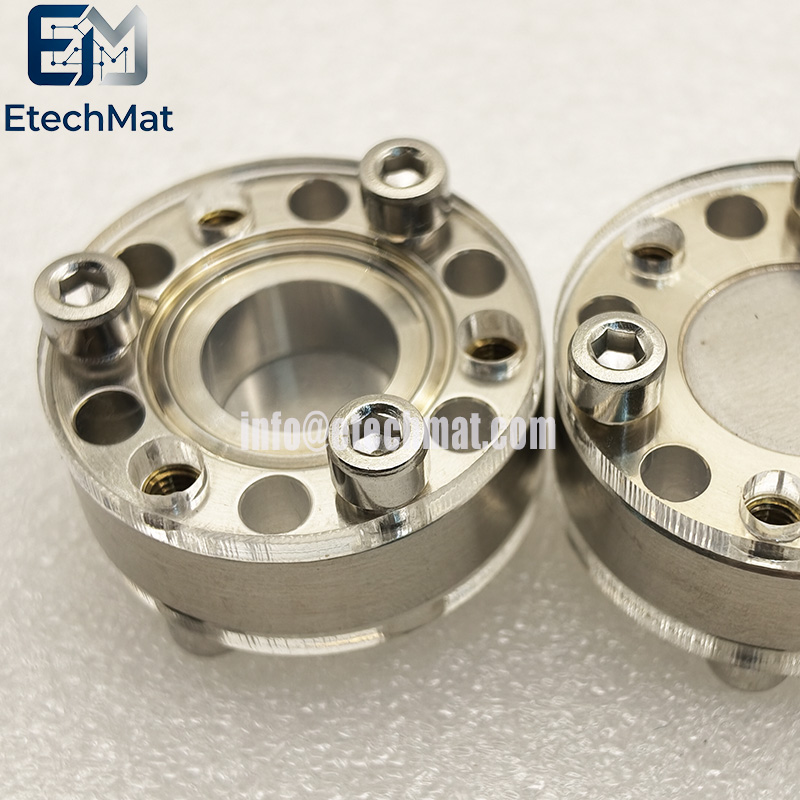

Description of Beryllium Windows for Industrial X-Ray Tubes

The normal beryllium windows often struggle on busy production floors. Repeated thermal cycling brings hidden micro‑cracks, slow vacuum leaks creep in over shift‑after‑shift operation, and inconsistent foil thickness creates uneven beam output that ruins NDT inspection reliability and triggers costly unplanned tube downtime. Our industrial‑focused beryllium windows are made from high‑purity stock, balancing dependable low‑energy X‑ray transmission with robust mechanical strength to stand up to harsh factory operating conditions. Every piece goes through strict dimensional checks, surface screening and leak testing before dispatch. Custom thickness and mounting options suit new tube builds or field retrofits for non‑destructive testing and process‑monitoring systems. Please follow formal beryllium safety guidance for all handling and installation work. If you are tired of short‑lived generic windows disrupting your production workflow, these precision components deliver steady, repeatable beam performance for round‑the‑clock industrial use.

Features of Beryllium Windows for Industrial X-Ray Tubes

1. Heavy-duty beryllium for industrial X-ray tubes

2. High transmission for flaw detection sensitivity

3. Withstands continuous high-power operation

4. Precision thickness for consistent beam quality

5. Vacuum-tight seals for tube longevity

6. Custom sizes for various industrial heads

7. Pinhole-free foil for artifact-free images

8. Helium leak-tested for rugged environments

9. Quick replacement to minimize downtime

10. Performance data included with each window

Applications of Beryllium Windows for Industrial X-Ray Tubes

Medical Imaging: Beryllium windows are incorporated in medical X-ray apparatus including X-Ray Radiography, Fluoroscopy, and Computed Tomography (CT) Scans. Beryllium allows imaging of greater portions due to its lower absorption of radiation.

Scientific Research: For research purposes, X-ray Beryllium Windowed Tubes are employed in X-Ray crystallography, diffraction, and other studies that deal with interactions of X-rays with different materials.

Industrial Applications: Beryllium Windows are incorporated in industrial X-ray tubes for Nondestructive Testing (NDT) of materials such as weld examinations and internal defect detection in metallic components.

Specifications of Beryllium Windows for Industrial X-Ray Tubes

Beryllium Window

Flange material: 316L

Flange Outer Diameter : 1.33inch(34mm)

Aperture Diameter : 0.53inch(13mm)

Foil Thickness. : 0.005inch(0.13mm)

Leak Rate: ≤ 1.0 x 10⁻¹⁰ Pa·m³/s
