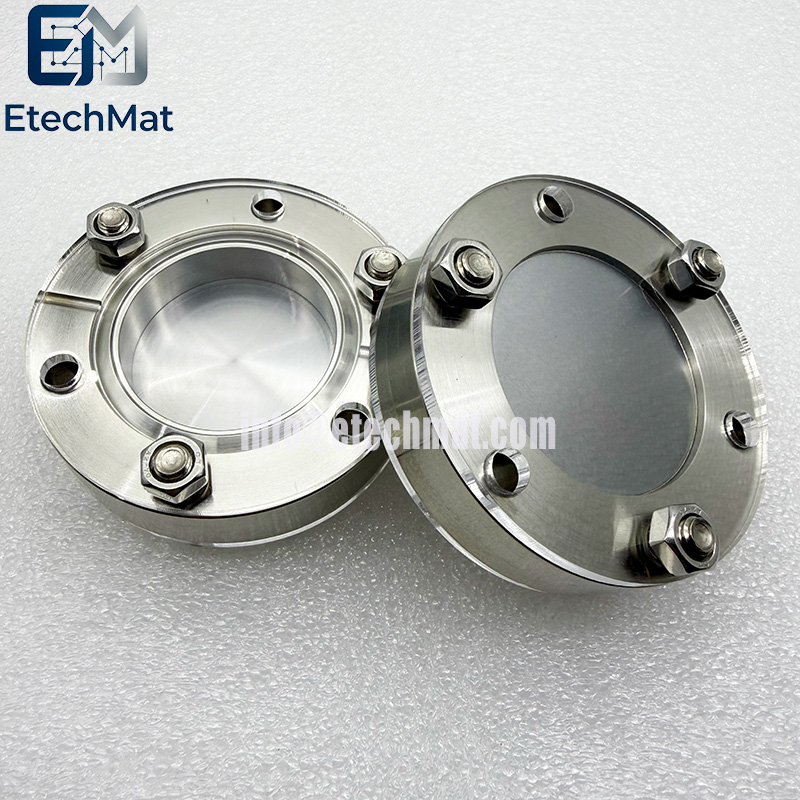

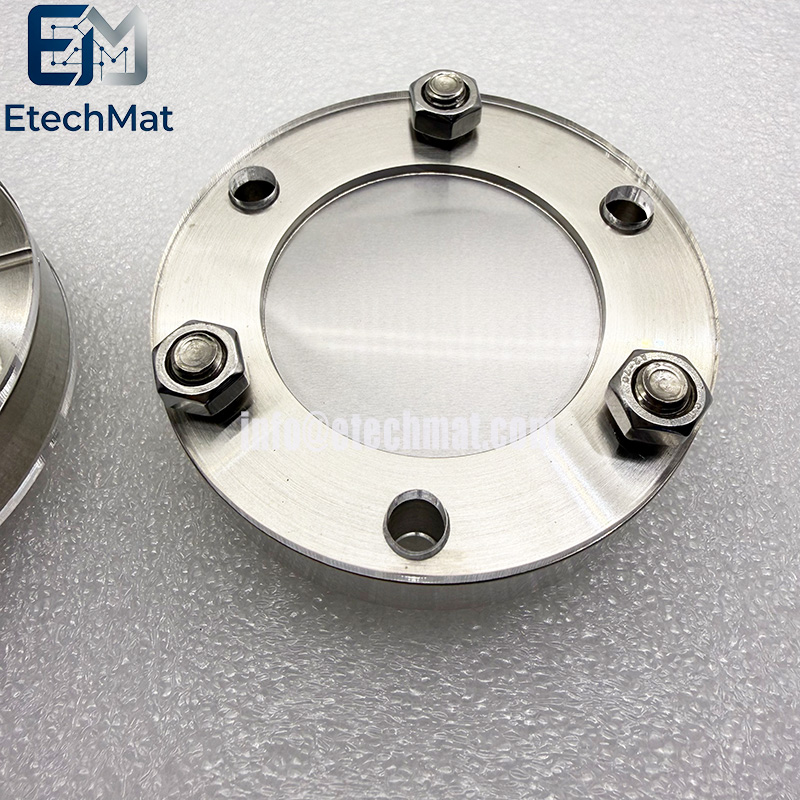

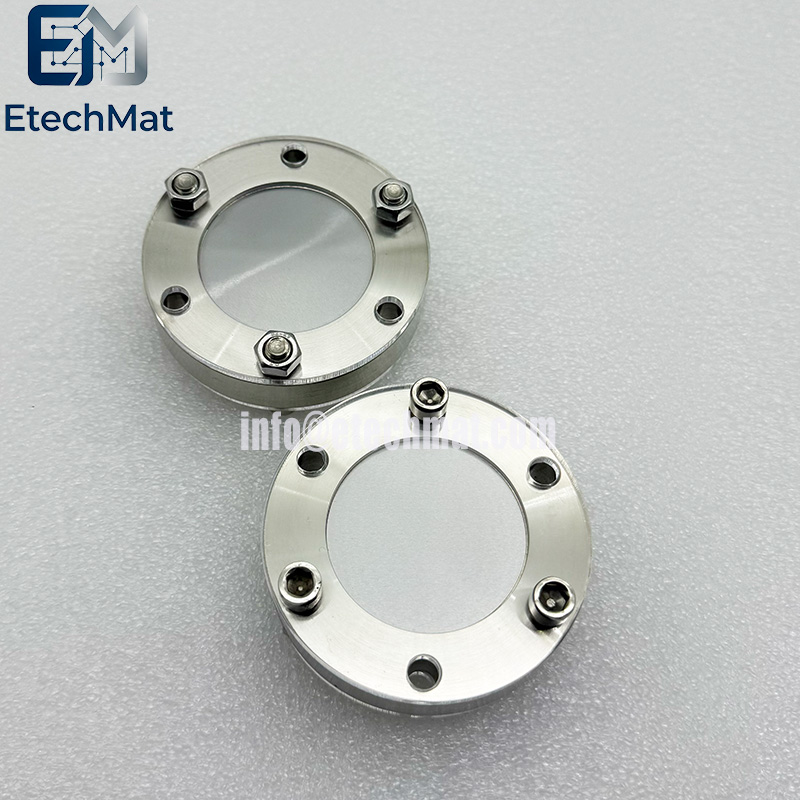

Description of Beryllium Window for X-Ray Tube

Many generic beryllium windows struggle under real‑world X‑ray tube operating conditions: thermal cycling creates internal stress, micro‑pinholes trigger slow vacuum leaks, and inconsistent foil thickness distorts beam output, bringing unexpected tube downtime and costly rebuilds. Our windows are crafted from high‑purity beryllium, balancing outstanding low‑energy X‑ray transmission with robust mechanical strength to hold stable vacuum pressure differentials. Every foil undergoes strict dimensional, surface and leak‑testing before dispatch to catch subtle defects that often slip past basic inspections. We support custom thicknesses and mounting options, fitting new‑build tubes or field retrofits for analytical, industrial and non‑destructive testing systems. Bear in mind that proper beryllium safety handling rules apply during installation and servicing. If you are tired of short‑lived windows ruining your X‑ray tube performance, these precision‑grade components deliver steady, repeatable beam output for your daily critical operations.

Features of Beryllium Window for X-Ray Tube

1. Precision beryllium window for X-ray tubes

2. High transmission for low-energy X-rays

3. Vacuum-sealed for tube integrity

4. Withstands high-temperature tube operation

5. Consistent thickness for uniform output

6. Polished finish reduces scatter radiation

7. Helium leak-tested for safety compliance

8. Custom diameters for various tube models

9. Durable foil for extended tube life

10. Certified purity for reliable performance

Applications of Beryllium Window for X-Ray Tube

Medical Imaging: Beryllium windows are critical components in X-ray machines, including CT scanners and fluoroscopes. Their ability to transmit X-rays with minimal distortion enhances image clarity and diagnostic accuracy.

Industrial Inspection: In industrial radiography, beryllium windows are used in X-ray systems for inspecting materials such as metals, composites, and welds. The high transparency ensures that the X-ray beam penetrates the materials effectively for detailed internal examination.

Scientific Research: Beryllium windows are also used in synchrotron radiation facilities and other high-energy physics experiments. In these settings, the need for high precision and low X-ray absorption is paramount, making beryllium an optimal choice.

Specifications of Beryllium Window for X-Ray Tube

Beryllium Window

Flange material: 316L

Flange Diameter : 2.75inch(70mm)

Aperture Diameter : 1.53inch(39mm)

Foil Thick. : 0.005inch(0.13mm)

Leak Rate: ≤ 1.0 x 10⁻¹⁰ Pa·m³/s
