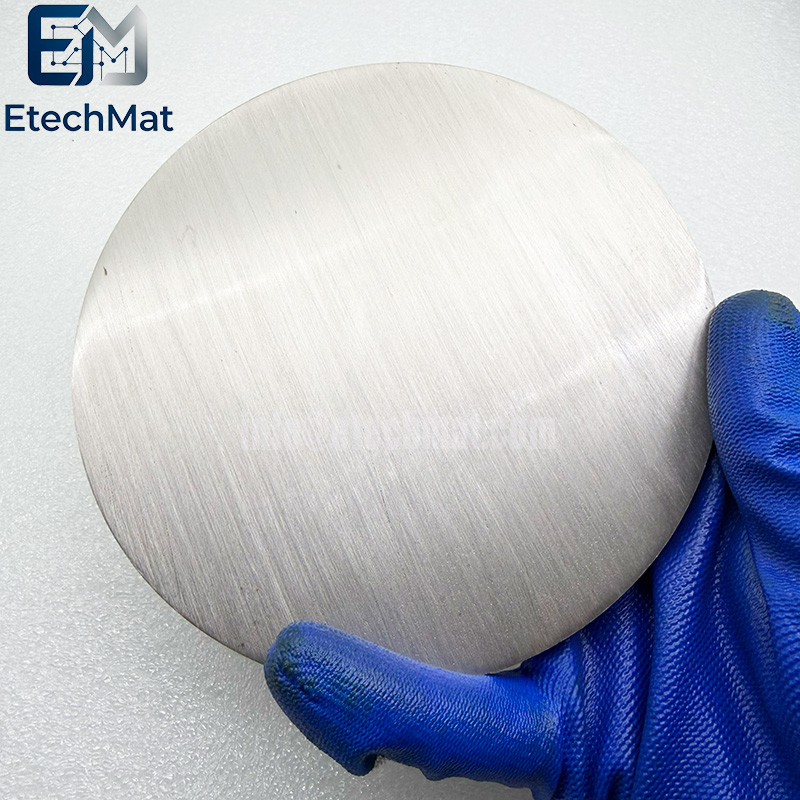

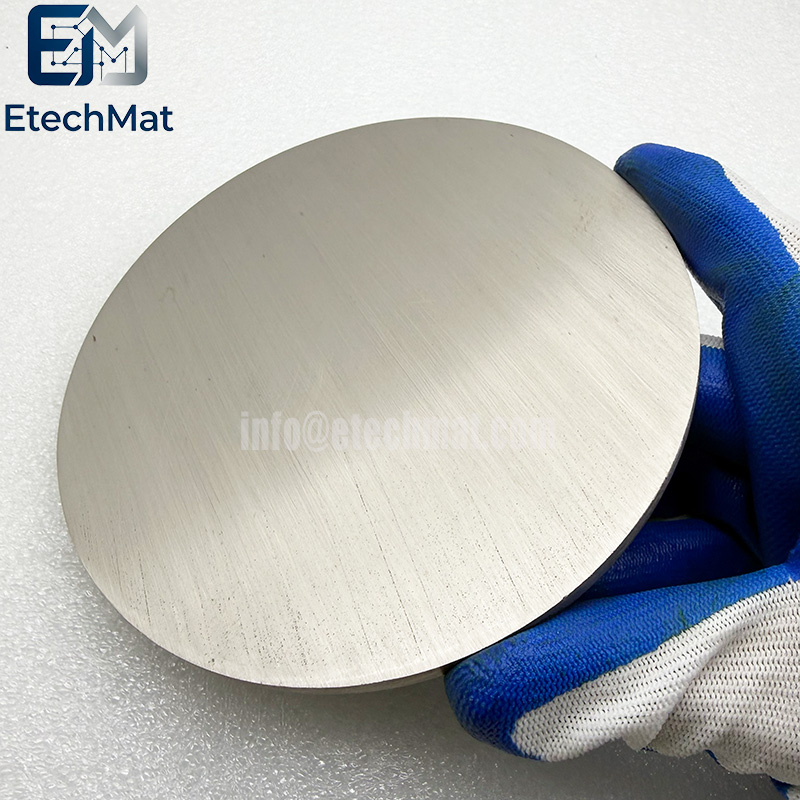

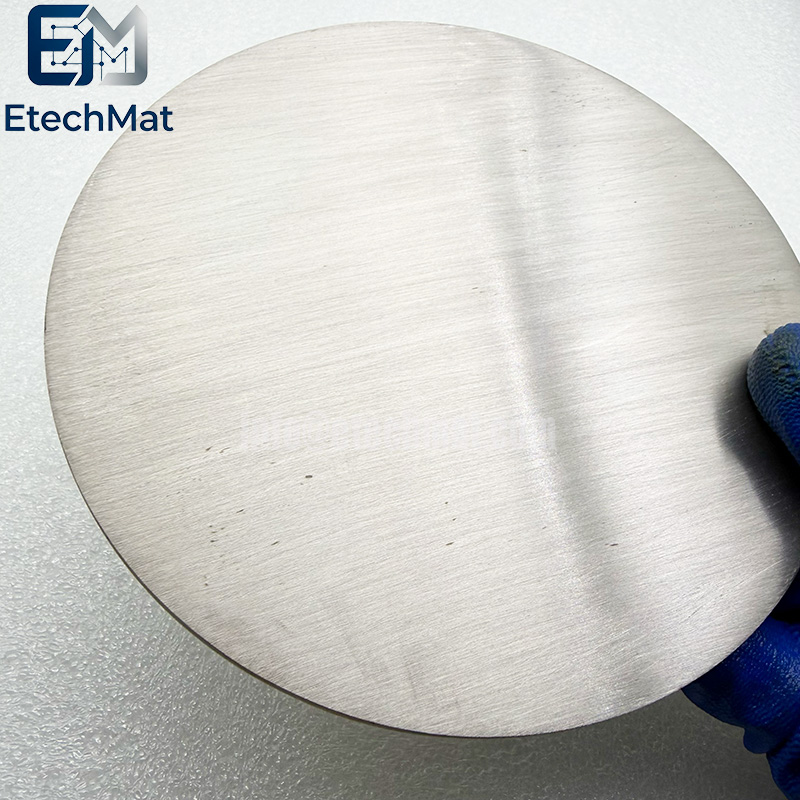

Description of Bi Bismuth 99.99% Pure Sputter Target

Bi Bismuth 99.99% Pure Sputter Target is designed for customers who require high-purity bismuth material, stable sputtering performance, and consistent thin-film results. Manufactured from 99.99% pure bismuth, it provides a reliable material source for applications including semiconductor research, electronic devices, optical coatings, and advanced functional materials. In thin-film deposition, material purity is only one part of achieving reliable results. Target uniformity, surface quality, and composition stability also play an important role in controlling film performance. This bismuth sputter target is produced under strict quality control to help minimize material variations, improve deposition repeatability, and support more predictable process outcomes. Unlike standard products that focus only on purity specifications, Bi Bismuth 99.99% Pure Sputter Target is developed with practical application needs in mind, including stable operation, compatibility with different sputtering systems, and efficient material utilization. Its excellent material properties make it suitable for research and production environments where consistent bismuth films are required. Available in customized sizes and configurations, this sputter target can be tailored to meet specific equipment and project requirements. It provides engineers and researchers with a dependable solution for exploring bismuth-based thin films and next-generation electronic technologies.

Features of Bi Bismuth 99.99% Pure Sputter Target

✅ High purity and low impurity levels

✅ Low melting point and suitability for low-temperature processing

✅ Unique intrinsic physical properties

✅ High environmental friendliness and suitability for diverse applications

Applications of Bi Bismuth 99.99% Pure Sputter Target

Flexible Electronics: Ultra-thin (1 mm) targets suitable for low-temperature deposition on flexible substrates such as PET and PI, used in bendable circuits.

Thermoelectrics: High-purity bismuth thin films used to harvest low-level thermal energy; an excellent choice for precision thermoelectric chips.

Cutting-edge Research: Used to explore the topological quantum realm and investigate fundamental physical phenomena, such as topological surface states.

Semiconductors and Optics: Used in coating processes for applications including integrated circuits, optical thin films, and information storage.

Specifications of Bi Bismuth 99.99% Pure Sputter Target

Circular Sputtering Targets (Diameter): 1.0”, 2.0”, 3.0”, 4.0”, 5.0”, 6.0”, up to 12”

Rectangular Sputtering Targets (Width x Length): 5” x 12”, 5” x 15”, 5” x 20”, 5” x 22”, 6” x 20”

Thickness: 0.125”, 0.25”

Shape: Disc/Rectangular

Bonding: Unbonded/Bonded

Purity: 4N(99.99%)
