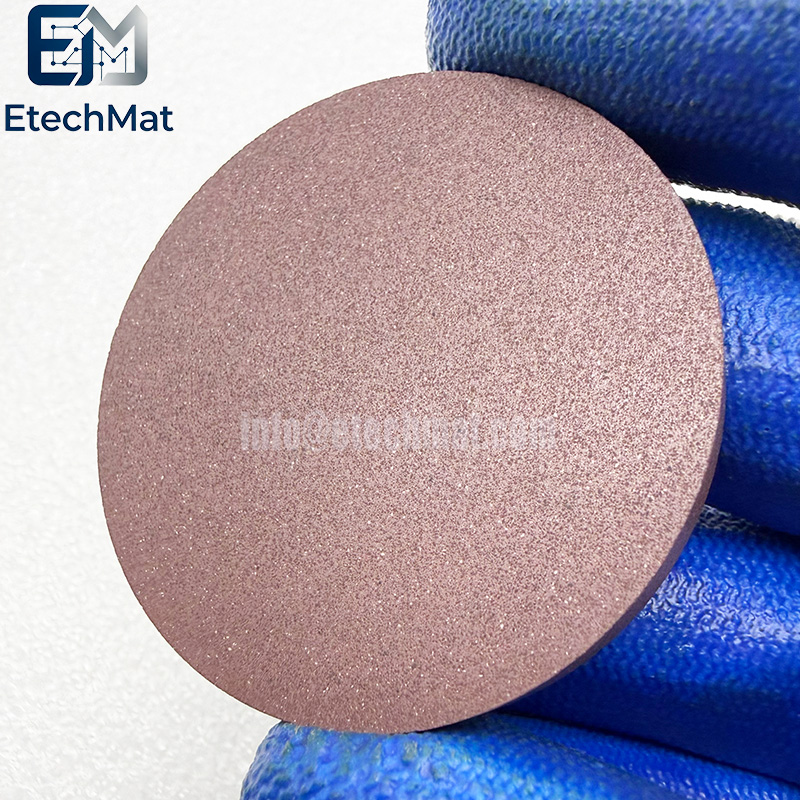

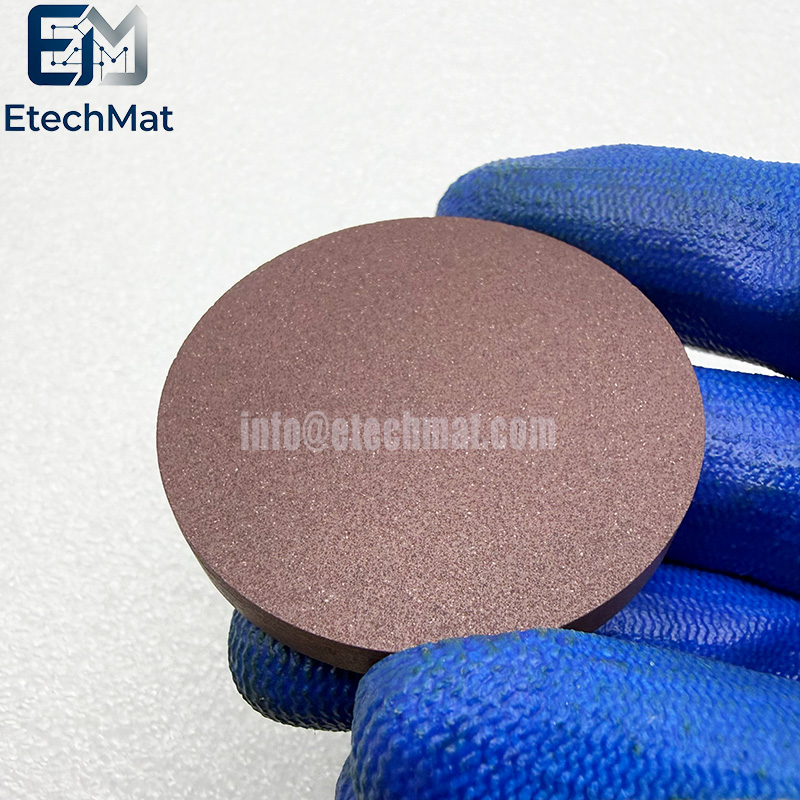

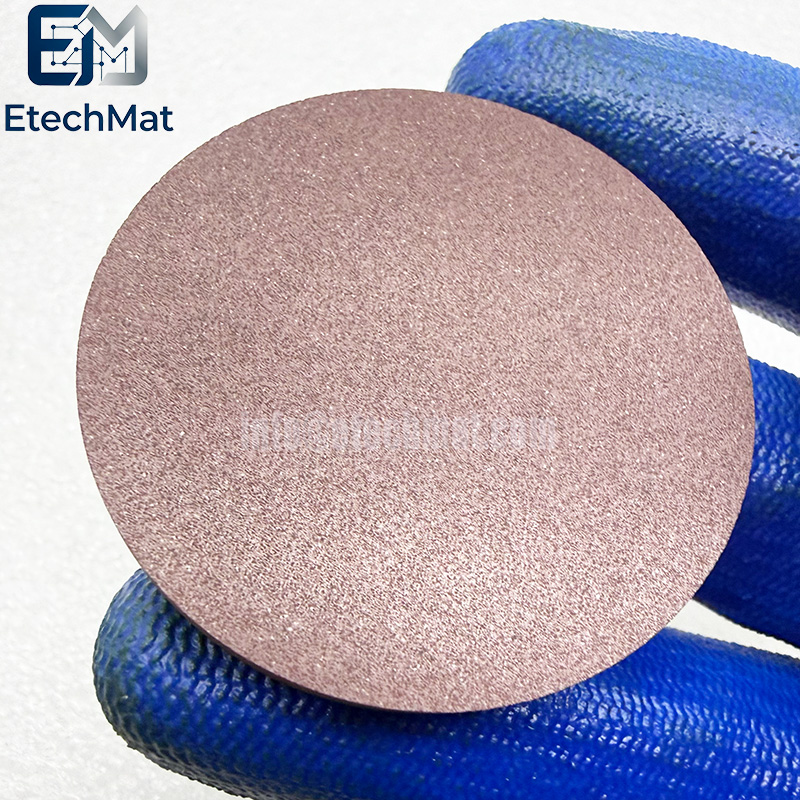

Description of 99.9% Pure BiFe0.95Mn0.05O3 Sputtering Target

99.9% Pure BiFe0.95Mn0.05O3 Sputtering Target is designed for researchers who need better control over complex oxide thin-film deposition. With a defined BiFe0.95Mn0.05O3 composition and 99.9% purity, it provides a consistent material source for ferroelectric, multiferroic, and other functional oxide research. When working with complex oxides, the challenge is often not simply obtaining a high-purity target. Small variations in composition, target condition, or sputtering parameters can affect phase formation, crystallinity, film uniformity, and the electrical or magnetic properties of the resulting film. This target is produced with controlled material quality to help reduce unnecessary variables and make deposition results easier to reproduce. The BiFe0.95Mn0.05O3 composition combines a BiFeO3-based oxide system with controlled Mn substitution, making it useful for researchers investigating composition-dependent changes in functional thin films. Its consistent structure and material quality provide a reliable starting point for optimizing deposition parameters and comparing experimental results. Suitable for magnetron sputtering and other PVD processes, the target can be supplied in customized dimensions and configurations to fit different deposition systems. It offers a practical solution for researchers who need consistent target quality without adding avoidable uncertainty to complex oxide film development.

Features of 99.9% Pure BiFe0.95Mn0.05O3 Sputtering Target

Base Material: The matrix is bismuth ferrite (BiFeO₃), a room-temperature multiferroic material that simultaneously exhibits ferroelectricity (Curie temperature of 830°C) and antiferromagnetism (Néel temperature of 370°C).

Doping Modification: 5% Mn is incorporated at the Fe site (Mn doping) primarily to suppress the leakage current issues commonly found in BiFeO₃ thin films and to enhance ferroelectric performance. Research indicates that Mn doping effectively reduces defects caused by Fe-ion valence fluctuations and oxygen vacancies, thereby lowering leakage current and improving ferroelectric properties.

Significance of Purity: A purity level of 99.9% implies that the impurity content is controlled to within 0.1%. High purity prevents impurities from acting as defects or sources of contamination within the thin film, which could otherwise compromise its electrical, optical, and magnetic properties.

Applications of 99.9% Pure BiFe0.95Mn0.05O3 Sputtering Target

Multiferroic thin film research: Primarily used to fabricate manganese-doped bismuth ferrite thin films via magnetron sputtering, enabling the study of physical properties such as ferroelectricity, magnetoelectric coupling, and exchange bias in multiferroic materials.

Development of functional electronic devices: These thin films hold potential for applications in areas such as ferroelectric memory, magnetoelectric coupling devices, and spintronic devices.

Platform for fundamental physics research: Serves as a platform to explore the physical mechanisms underlying low-power spintronic devices, such as electric-field control of magnetism.

Specifications of 99.9% Pure BiFe0.95Mn0.05O3 Sputtering Target

Circular Sputtering Targets (Diameter): 1.0”, 2.0”, 3.0”, 4.0”, 5.0”, 6.0”, up to 12”

Rectangular Sputtering Targets (Width x Length): 5” x 12”, 5” x 15”, 5” x 20”, 5” x 22”, 6” x 20”

Thickness: 0.125”, 0.25”

Shape: Disc/Rectangular

Bonding: Unbonded/Bonded

Purity: 3N(99.9%)

⚠️ Note

Target quality—specifically density, grain size, and compositional uniformity—directly affects the quality of the sputtered thin film. When purchasing, verify parameters such as target density and grain size, and require the supplier to provide a detailed chemical composition analysis report to ensure the Fe: Mn ratio and impurity levels meet specifications. Sputtering process parameters (e.g., substrate temperature, argon-to-oxygen ratio) also significantly influence the final film performance and must be optimized based on experimental objectives.
